HZ Combined Wall Systems For Deep Port Constructions

HZ combined wall systems for deep port constructions

The HZ Steel Wall System is a combined wall created by the combination of H king piles and Z infill sheets, in some cases involving special hot rolled connectors connecting infill sheet piles and HZ king piles to guarantee a strong enough continuous wall. This system has a high bending resistance and stiffness. The king piles can also be used as bearing piles submitted to high vertical loads, e.g. loads from cranes on quay walls. The intermediary sheet piles (or "infill sheets") act mainly as soil-retaining and load-transferring elements. Their main task is to transfer the horizontal loads (soil pressure, water pressure,...) to the king piles, and are usually between 60% and 80% of the length of the king piles.HZ combi wall systems are ideal for the construction of deep ports.

HZ Combined Wall are available in the following forms:

1. Double H Pile which means H pile connects with H pile through interlocking system.

2. H Pile with double Z pile.

3. Double H pile with double Z pile.

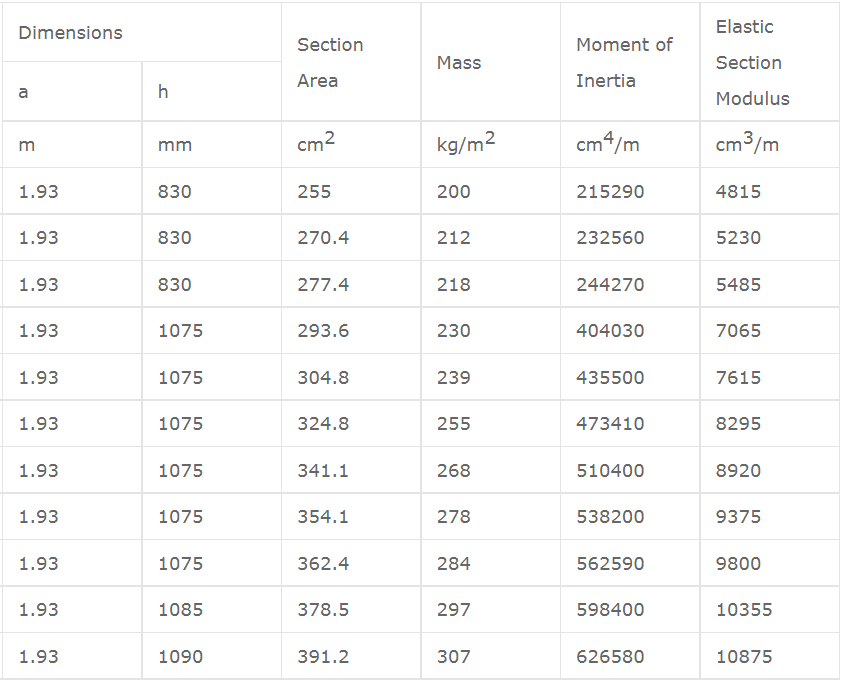

Sectional Properties Examples

Detailed Product Images

Applications

Certificates

About Us - Hangzhou Famous Steel Engineering Co.,Ltd

Famous is a business unit of KNSN Group. Famous supplies to the global markets a wide variety of premium steel products for foundations : Z type, U type, Omega type, Trench, Flat web sheet piles, HZ combined walls, Tubular combined walls, tie-rods and accessories, in assortment of steel grades and production standards. A wide range of thicknesses and widths and depths are achievable at very moderate prices and committed to be shipped within the stipulated time frame.

If you have interest, please contact us and tell us about your project by email or phone. We are happy to talk about our capabilities and solutions.

Email: Eva@hfsteelstructure.com

Phone: +86-571-87688170; +86-13989831561
